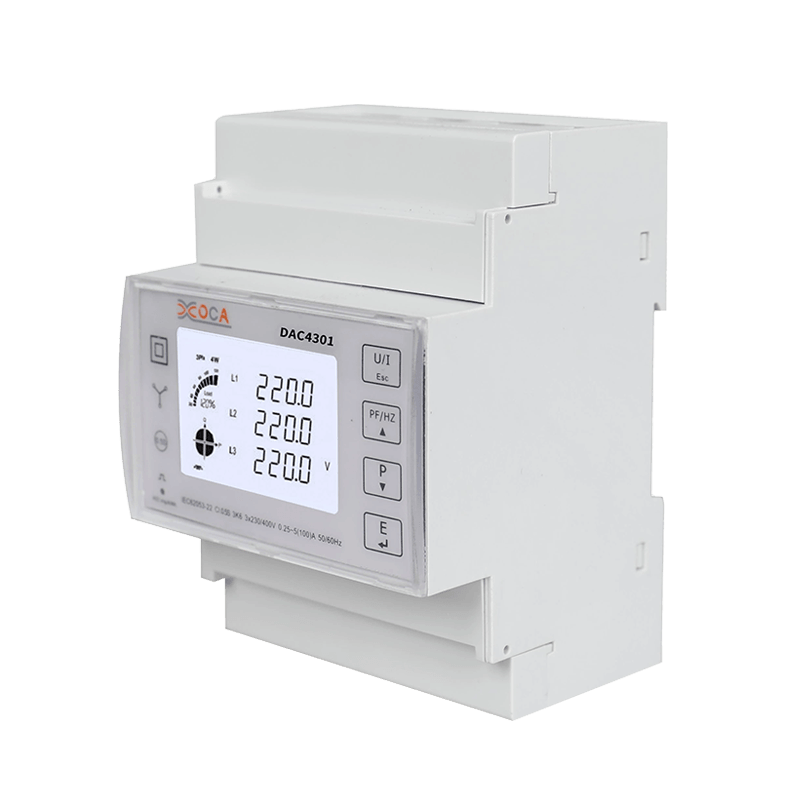

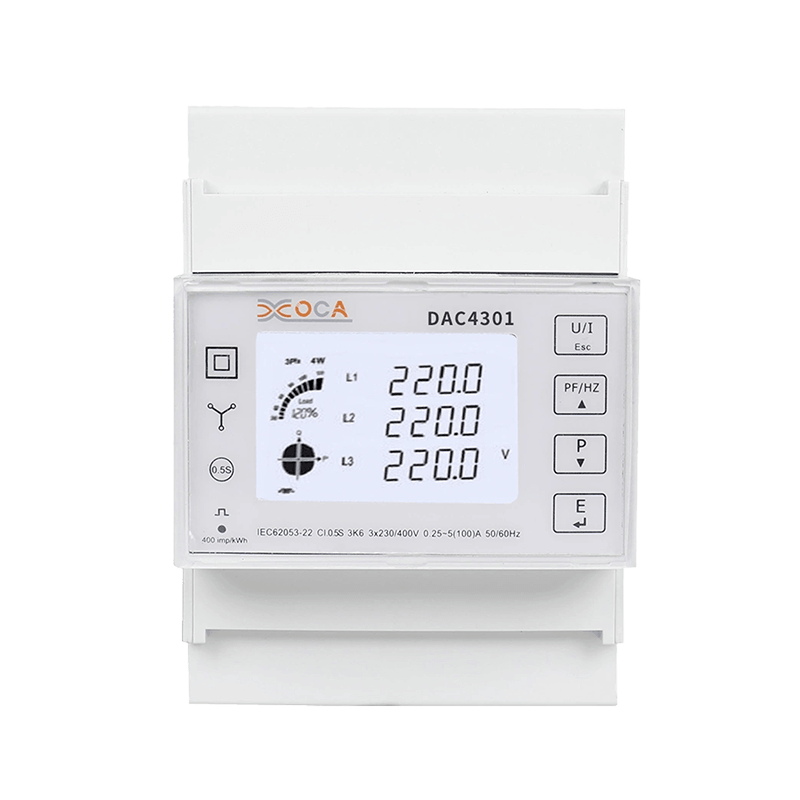

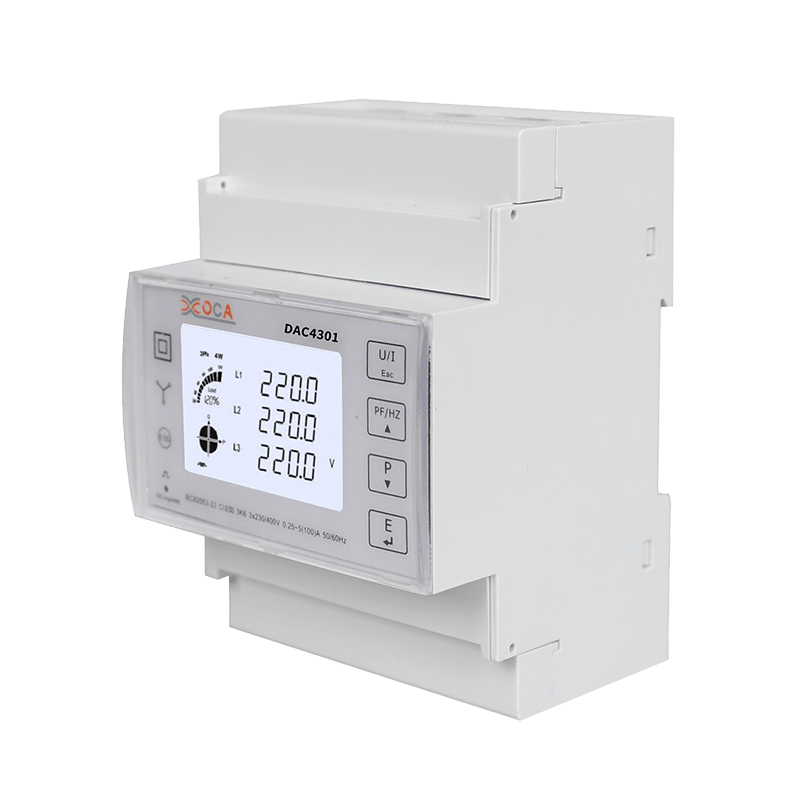

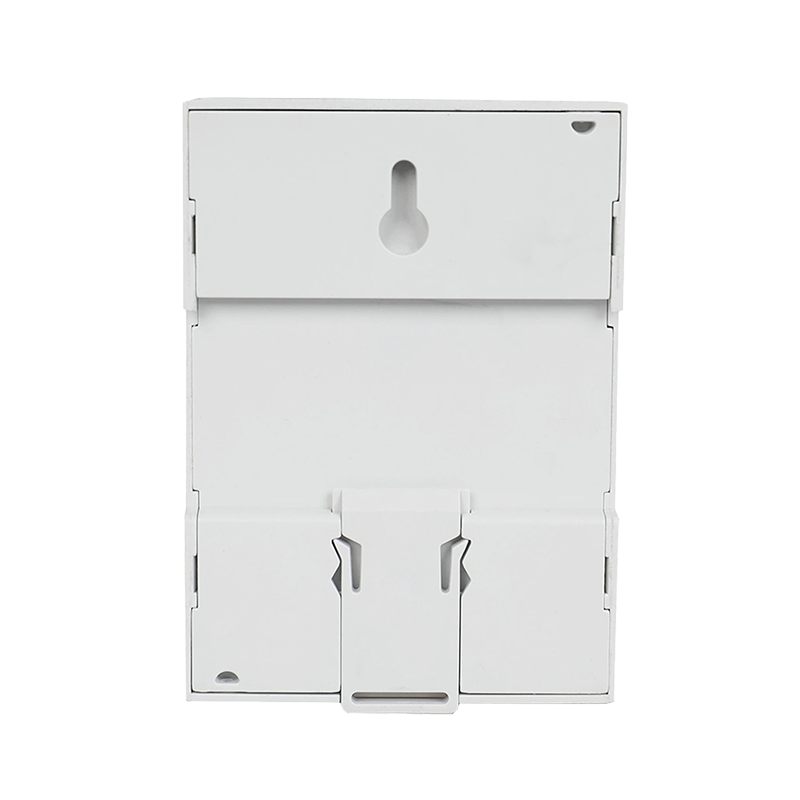

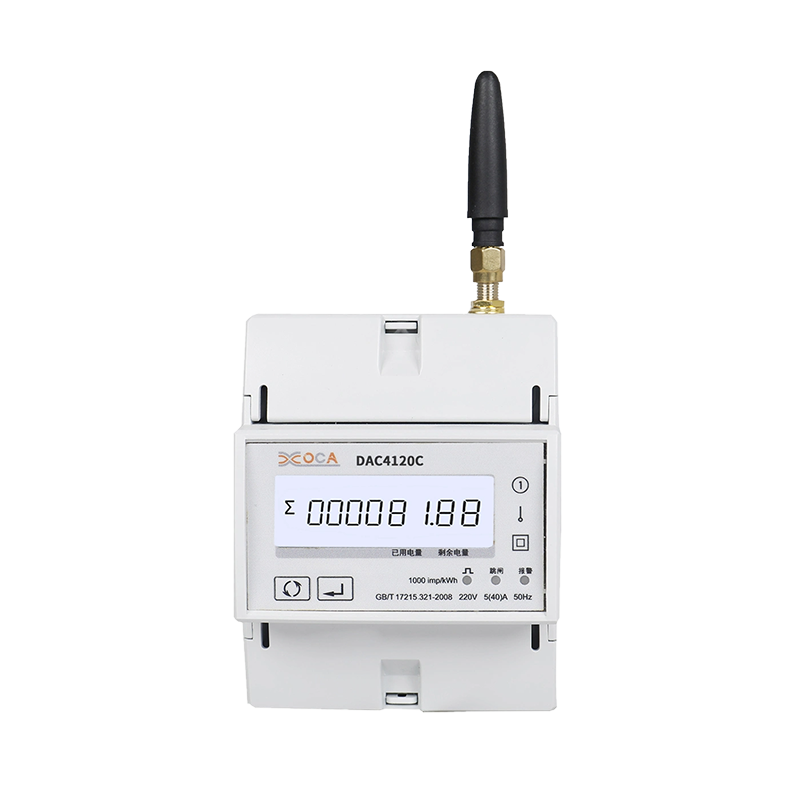

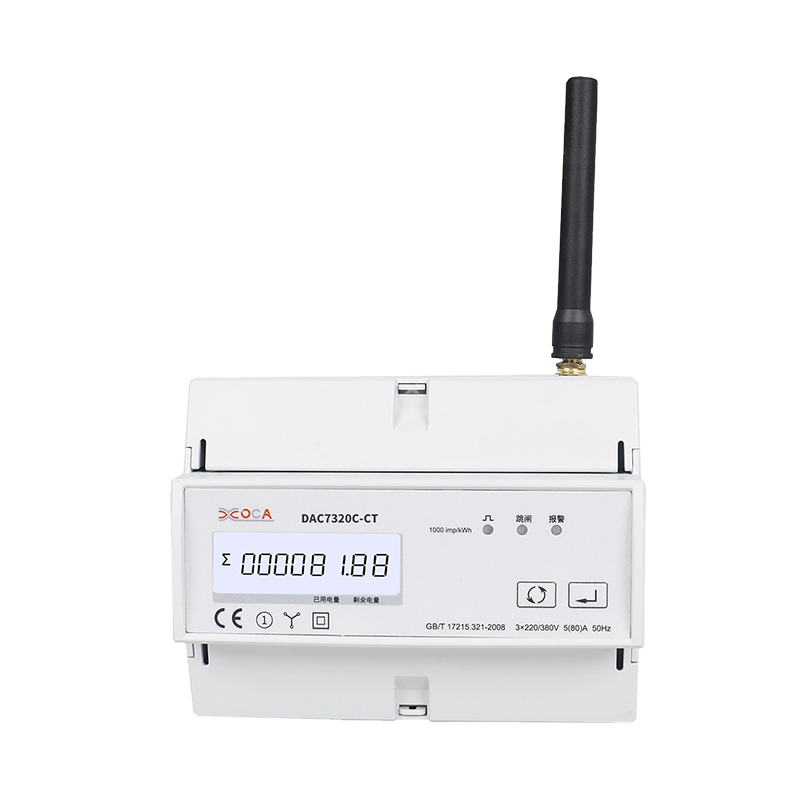

DIN Rail Three Phase Modbus Smart Wireless Electronic Meter

After-sales Service:New One Replace Within One Year
Warranty:3years
Display:Digital
Installation:DIN Rail
Usage:Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment:Three-phase Four-wire

Contact now Ask a question

Product parameters

Application

The meter is designed to measure three phase four wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1.Max 100A DC.
2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Provide total harmonic content analysis data of voltage and current
6.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
7.Support dual timing of meter start up running time and load running time
8.Support access of two rate switching signals and realize power metering of two rates
9.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol

Product Description

Model NO.	DAC4301
Theory	Electronic Meter
Power Meter Connection	Feed-through Type
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	Dac4301
Related Voltage	3*110/190V or 230/400V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	AC
Measure Type	3p4w
Pulse Constant	Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh
Operating Temperature	-25 to +55C
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Other Function-1	Multi-Tariff
Transport Package	Paper Carton+Pallets
Specification	7210065 mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technicial parameters

Model	DAC4300/DAC4301/DAC4302/DAC4300CT/DAC4301CT/DAC4302CT
Electrical Characteristics	Rate voltage (Un)	3*110/190V or 230/400V AC
	Operational voltage	L-N: 85 to 275V AC; L-L: 85 to 480V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	100A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	400 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	9999999.9 kWh/kVarh
	Measure type	Three phase four wire, Three phase three wire,Single phsae two wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 38400 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

DIN Rail three-phase Modbus smart wireless electronic meter is a high-precision, intelligent power metering device with Modbus communication protocol and wireless data transmission function, suitable for various industrial and commercial scenarios. Through accurate power data collection, real-time monitoring and remote management, it helps users achieve energy management and optimization.

Main functions:
Three-phase power measurement: It can accurately measure the voltage, current, power (active power, reactive power), power factor, frequency, total power, etc. of three-phase AC power.
Modbus communication protocol: It supports Modbus RTU (RS485) and Modbus TCP protocols, and can realize data communication with industrial automation systems, PLCs, remote monitoring systems and other equipment, which is convenient for integration into existing energy management systems.
Wireless communication: Built-in wireless module (such as Wi-Fi or LoRa), supports remote wireless data transmission, facilitates remote monitoring and management of equipment, and reduces the complexity of on-site wiring.
High precision: It has high-precision power metering function, complies with relevant standards such as IEC 62053-21, and ensures the accuracy and reliability of data.
Real-time monitoring and alarm function: It can monitor power parameters in real time. Once an abnormality occurs (such as voltage exceeding the standard, low power factor, etc.), the system can automatically alarm and notify the user in time for processing.
Remote management: Supports data storage and analysis based on cloud platforms or local servers to help users manage and optimize energy.

Main technical parameters:
Voltage range: The three-phase voltage range is usually 380V to 480V (suitable for most industrial environments).
Current range: According to load requirements, it is usually in the range of 5A to 100A (supports external current transformer).
Frequency range: 50Hz/60Hz, adapted to global power system standards.
Communication interface: Support Modbus RTU (RS485) or Modbus TCP (Ethernet interface) communication protocol.
Wireless function: Support Wi-Fi/LoRa wireless transmission, support remote data acquisition and control.
Working temperature: -20°C to +60°C (adapt to industrial field environment).
Installation method: DIN Rail installation method, convenient for installation in a standard electrical control cabinet.

Application scenarios and fields:
Industrial automation and energy management:
In industrial production lines, factories, mines and other scenarios, it is widely used for monitoring, data collection and analysis of power consumption.
It helps to achieve efficient management and optimization of energy, reduce energy consumption and operating costs.
Building energy monitoring:
In commercial buildings, office buildings, shopping centers and other buildings, wireless electronic meters are used to monitor three-phase power in real time to help buildings analyze and manage energy efficiency.
Distribution network monitoring:
It can be used for online monitoring of distribution transformers, distribution cabinets and other power equipment, real-time collection of power data, and reliable data support for power companies to ensure the stability of the power grid.
Smart grid and distributed energy system:
In smart grid and distributed energy systems, real-time monitoring and remote data transmission of power data through this electronic meter will help improve the intelligence and automation level of the power grid.
Remote monitoring and data collection:
It is suitable for places where frequent inspections are not possible, such as wind farms, solar power stations, mining equipment, transportation warehouses, etc. With the help of wireless communication function, users can view power parameters in real time through cloud platforms or remote terminals.
Commercial and retail industries:
Shopping malls, supermarkets, hotels and other places use smart meters to accurately measure three-phase power supply, conduct statistics and analysis of power consumption, and help realize smart electricity use.
