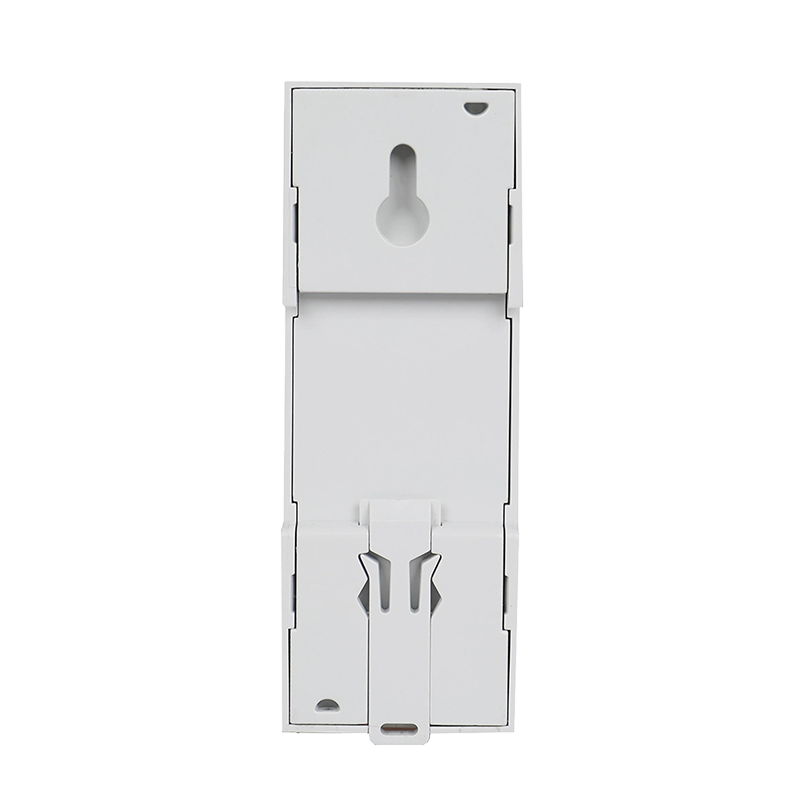

DAC2101 DIN Rail Single Phase LCD Display Multi-Tariff Modbus Energy Meter

High Precision Single Phase Multi-function Modbus Communication 2T House/industrial use DIN rail Electric Meter

1.Maximum 80A direct access

2.Standard 2 modulus width, TH35-7.5 DIN rail installation

3.Support two-way electric energy and multi-rate electric energy metering, and provide monthly and daily electricity consumption statistics

4.Support the automatic power-oﬀ protection function of power consumption parameter monitoring alarm (support up to two alarm monitoring)

5.Support Modbus Communication

6.It supports 1 channel passive pulse output, 1 channel RS485 communication, and the baud rate is up to 38400bps

7.Installation mode: Guide rail installation

Contact now Ask a question

Product parameters

Application

DAC2100(C) series products are single phase multi-function rail installtion enegery meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc.Meanwhile they can provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, monthly and daily energy consumption statistics.This series of products also can support the analysis of electric power parameter measurement in one phase two wires grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis, real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.

This series of products with RS485 communication interface, baud rate maximum support 38400bps, supporting Modbus, DLT645 communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of various parameters. The product has the function of password protection, which ensures the data security of the product.

This series of products meet IEC61010, IEC61326, IEC62053, IEC61557, EN50470 etc. international standard.

Prouducts character
1.Max 100A DC.
2.Standard 2-modulus width, TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
6.Support dual timing of meter start up running time and load running time
7.Support access of two rate switching signals and realize power metering of two rates
8.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol

Product Description

Model NO.	DAC2101
Theory	Electronic Meter
Power Meter Connection	Feed-through Type
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	DAC2101
Related Voltage	110V or 230V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	AC
Measure Type	1p2w
Pulse Constant	1000 Imp/Kwh
Operating Temperature	-25 to +55ºC
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Other Function	Prepaid Function
Transport Package	Paper Carton+Pallets
Specification	3610065mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technical parameters

Model	DAC2100/DAC2101/DAC2102/DAC2120C/DAC2121C/DAC2160C/DAC2161C
Electrical Characteristics	Rate voltage (Un)	110V or 230V AC
	Operational voltage	85 to 275V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	100A(without relay items)/80A(with relay items)
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	1000 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	999999.99 kWh/kVarh
	Measure type	Single phase two wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55℃
	Storage Temperature	-40 to +80℃
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m，80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V，0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 38400 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs
Wireless communications	Types that can be supported	WIFI, LoRa, NB-IoT, 4G，Zigbee
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

We are excited to present our latest product - the DIN Rail Single Phase LCD Display Multi-Tariff Modbus Energy Meter. Designed with cutting-edge technology and precision engineering, this energy meter is a game-changer in the world of energy monitoring and management. Let's delve into the exceptional features and benefits of our Modbus Energy Meter:

Maximum 80A Direct Access:

Our DIN Rail Single Phase Modbus Energy Meter allows for a maximum direct access of 80A, providing you with accurate measurements and real-time energy data.

Space-Efficient Design:

The energy meter features a standard 2 modulus width, making it easy to install on TH35-7.5 DIN rails, ensuring a space-saving and organized setup.

Versatile Multi-Tariff Functionality:

Take control of your energy consumption with the multi-tariff function. Our energy meter supports two-way electric energy and multi-rate electric energy metering, providing you with valuable insights into your energy usage throughout the day.

Convenient Consumption Statistics:

Stay informed about your electricity consumption patterns with ease. Our energy meter provides monthly and daily electricity consumption statistics, empowering you to optimize your energy usage and make informed decisions.

Smart Power Consumption Protection:

Rest easy knowing that our energy meter is equipped with an automatic power-off protection function for power consumption parameter monitoring. You can set up to two alarm monitors to ensure your energy consumption stays within your desired range.

Seamless Modbus Communication:

Effortlessly communicate with the energy meter through Modbus Communication. The Modbus protocol ensures efficient data transmission, enabling you to access real-time data and remotely manage your energy usage.

Flexible Connectivity Options:

Our energy meter supports various connectivity options to suit your needs. It features 1 channel passive pulse output, allowing for external data recording. Additionally, it offers 1 channel RS485 communication with a baud rate of up to 38400bps, enabling seamless integration with your energy management system.

Easy Guide Rail Installation:

Installing the energy meter is a breeze, thanks to its guide rail installation mode. This user-friendly feature ensures a hassle-free setup process and saves you valuable time.

Empower Your Energy Management:

With the DIN Rail Single Phase LCD Display Multi-Tariff Modbus Energy Meter, you gain full control over your energy consumption. Monitor your usage, implement energy-saving strategies, and optimize your electricity bills with confidence.

Enhanced Data Visualization:

The LCD display provides clear and concise readings, allowing for easy data visualization. Access real-time information and keep track of your energy consumption effortlessly.

Reliable and Accurate Measurement:

Our energy meter ensures reliable and accurate measurements, providing you with trustworthy data to guide your energy management decisions.

Designed for Sustainability:

Embrace a greener future with our energy meter. By efficiently managing your energy usage, you contribute to a more sustainable and eco-friendly environment.

In conclusion, our DIN Rail Single Phase LCD Display Multi-Tariff Modbus Energy Meter is the epitome of efficiency, reliability, and smart energy management. With its advanced features, multi-tariff functionality, and seamless connectivity options, it empowers you to take charge of your energy consumption like never before. Experience the power of smart energy management - order our Modbus Energy Meter today and unlock the potential for energy savings and sustainability in your electrical system!
