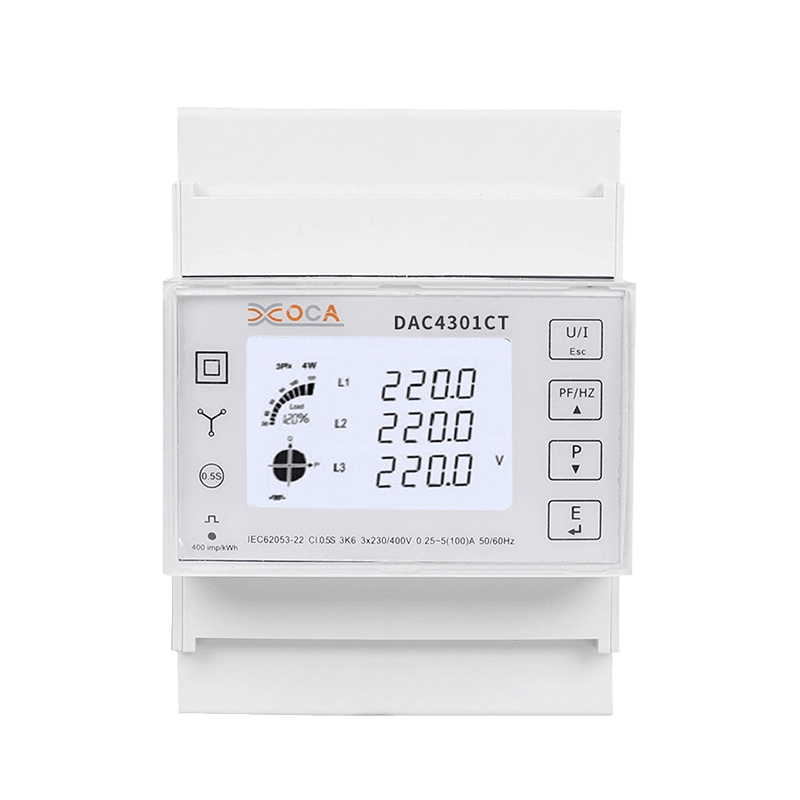

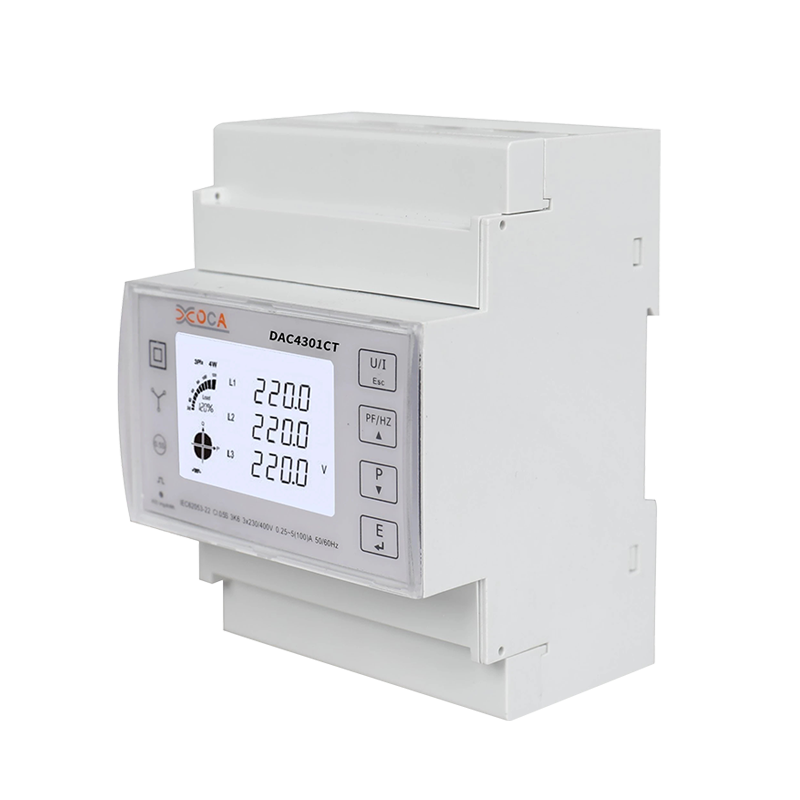

Dac4301CT DIN Rail Three Phase Prepaid CT Smart Multimeter

After-sales Service:New One Replace Within One Year
Warranty:3years
Display:Digital
Installation:DIN Rail
Usage:Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment:Three-phase Four-wire

Contact now Ask a question

Product parameters

Application

The meter is designed to measure three phase four wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1.Max 100A DC.

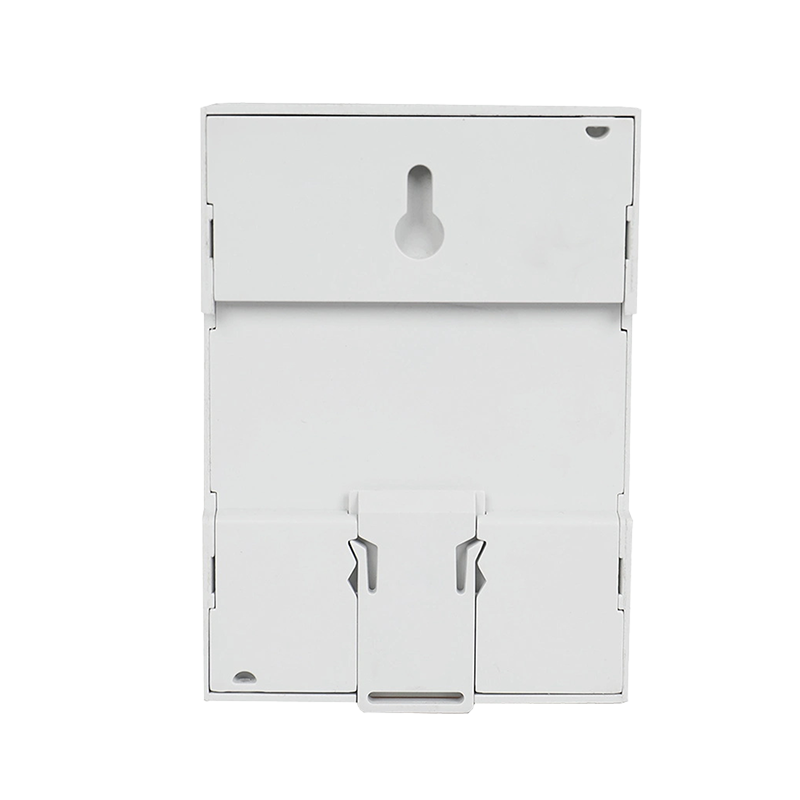

2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Provide total harmonic content analysis data of voltage and current
6.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
7.Support dual timing of meter start up running time and load running time
8.Support access of two rate switching signals and realize power metering of two rates
9.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol

Product Description

Model NO.	Dac4301CT
Theory	Electronic Meter
Power Meter Connection	Feed-through Type
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	Dac4301CT
Related Voltage	3*110/190V or 230/400V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	AC
Measure Type	3p4w
Pulse Constant	Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh
Operating Temperature	-25 to +55C
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Other Function-1	2t
Other Function-2	Current Transformer
Transport Package	Paper Carton+Pallets
Specification	7210065 mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technicial parameters

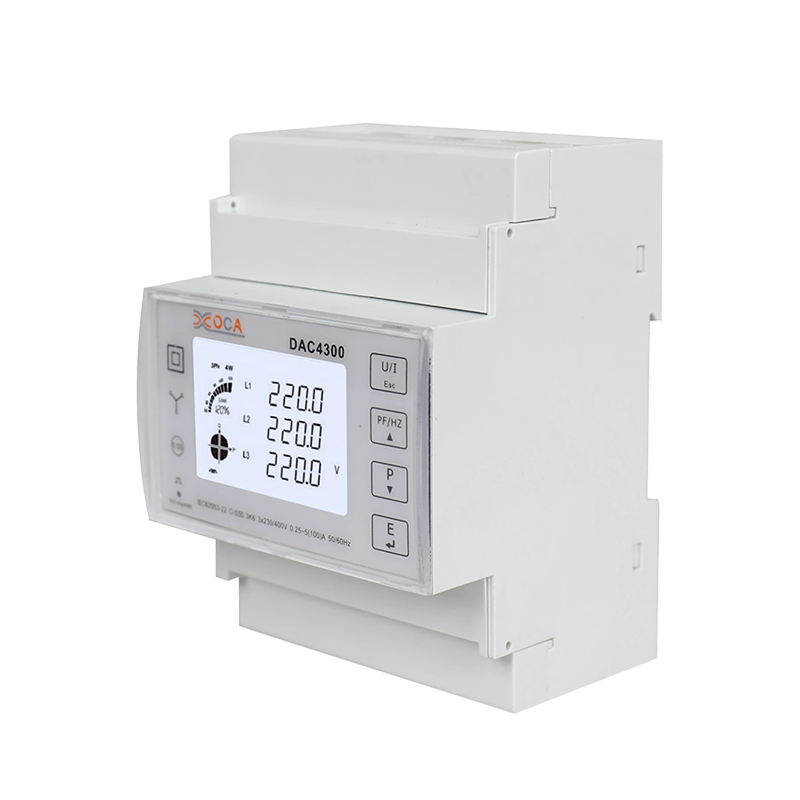

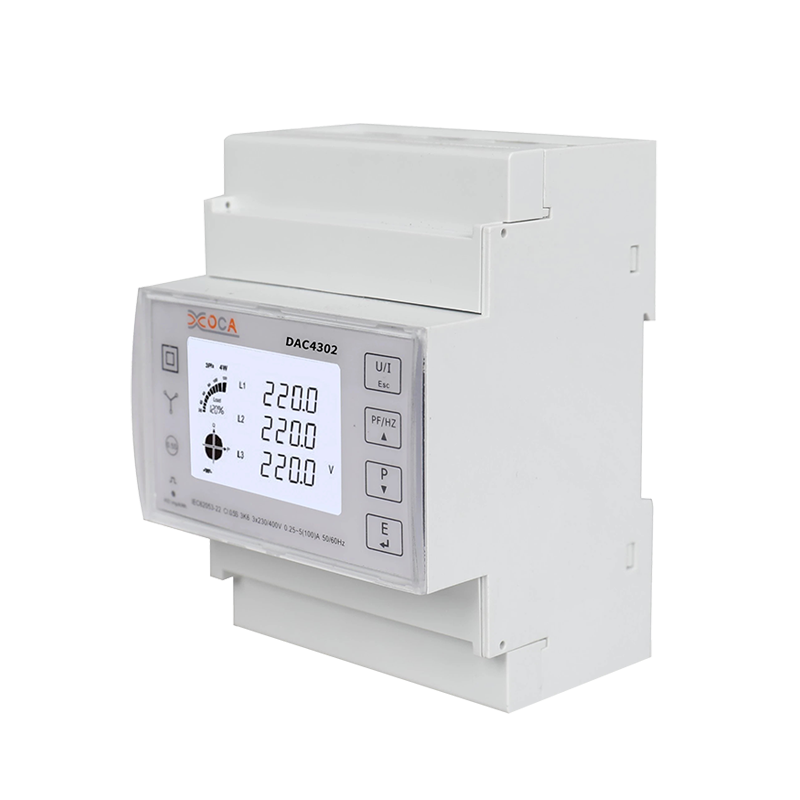

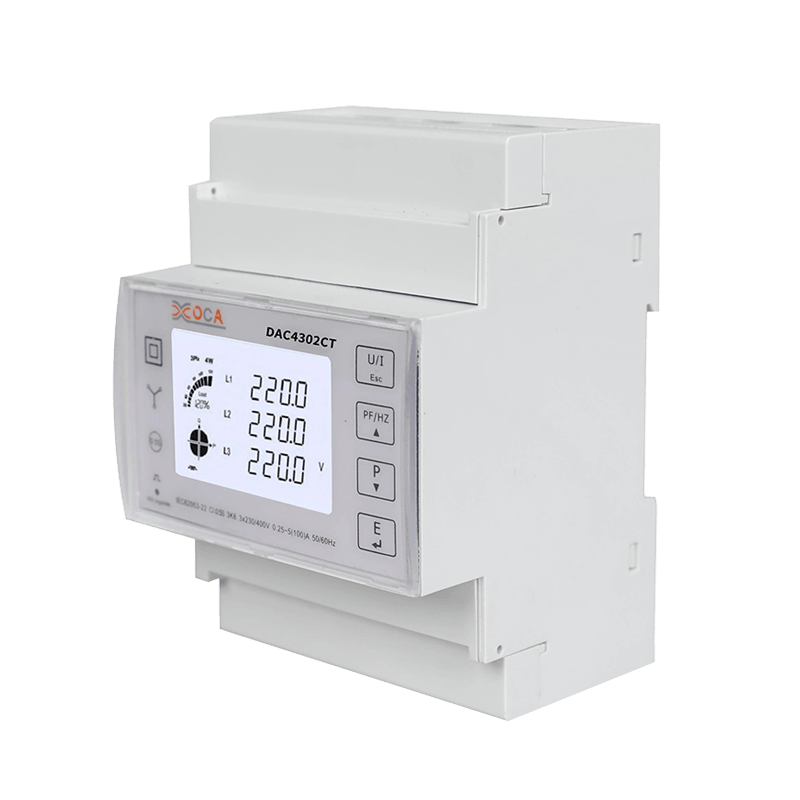

Model	DAC4300/DAC4301/DAC4302/DAC4300CT/DAC4301CT/DAC4302CT
Electrical Characteristics	Rate voltage (Un)	3*110/190V or 230/400V AC
	Operational voltage	L-N: 85 to 275V AC; L-L: 85 to 480V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	100A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	400 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	9999999.9 kWh/kVarh
	Measure type	Three phase four wire, Three phase three wire,Single phsae two wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 38400 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

DIN Rail three-phase prepaid CT smart meter is a high-precision, multi-functional power measurement device designed for commercial, industrial and residential applications. The meter supports three-phase voltage measurement, has a high measurement accuracy of ±0.5%, and can accurately monitor current, power and power factor. Its prepayment function allows users to recharge via card, password or network, which facilitates electricity cost management. The device is equipped with an LCD display and supports RS485 communication interface to achieve seamless connection with energy management systems. It is suitable for office buildings, factories, shopping malls and other places to help users achieve intelligent power monitoring and cost control.

Product parameters:
Voltage range: 3 x 230/400V AC
Measurement accuracy: ±0.5% (voltage, current, power)
Current measurement range: 0-100A (CT ratio adjustable)
Frequency range: 45-65Hz
Power factor measurement range: 0.00-1.00
Display: LCD display
Communication interface: RS485, Modbus RTU
Prepayment function: Support card/password/network recharge
Operating temperature: -10°C to +55°C
Storage temperature: -20°C to +70°C
Number of phases: 3 phases
Installation method: DIN rail installation
Protection level: IP54

Application range:
Commercial buildings: Suitable for power management and cost monitoring in office buildings, shopping malls, hotels and other places.
Industrial facilities: Used for power consumption monitoring and management in industrial environments such as factory workshops and production lines.
Residential areas: Used for power metering and management in high-rise residential areas, communities and other places.
Energy Management: Helps energy management companies or power companies to conduct real-time monitoring and fee management.
