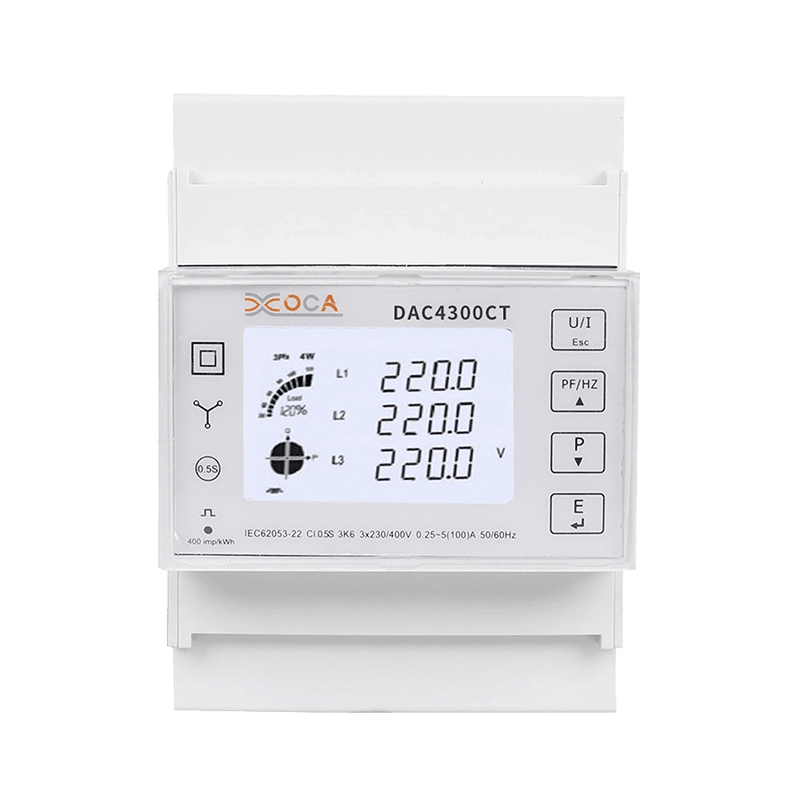

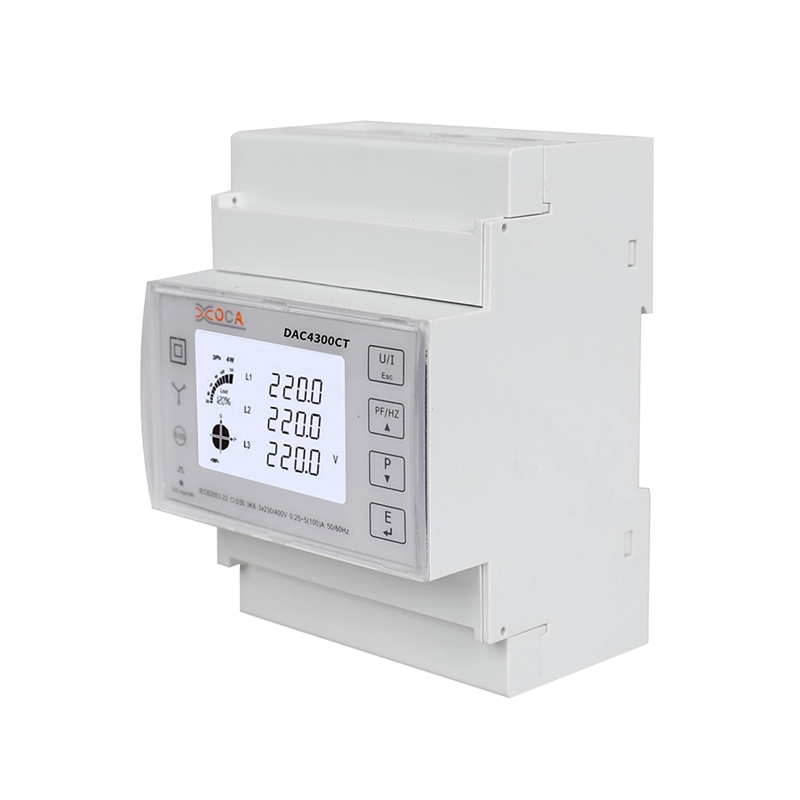

Dac4300CT DIN Rail Smart Three Phase Electricity Meter

After-sales Service:New One Replace Within One Year
Warranty:3years
Display:Digital
Installation:Indirect Connected
Usage:Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment:Three-phase Four-wire

Contact now Ask a question

Product parameters

Application

The meter is designed to measure three phase four wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1.Max 100A DC.

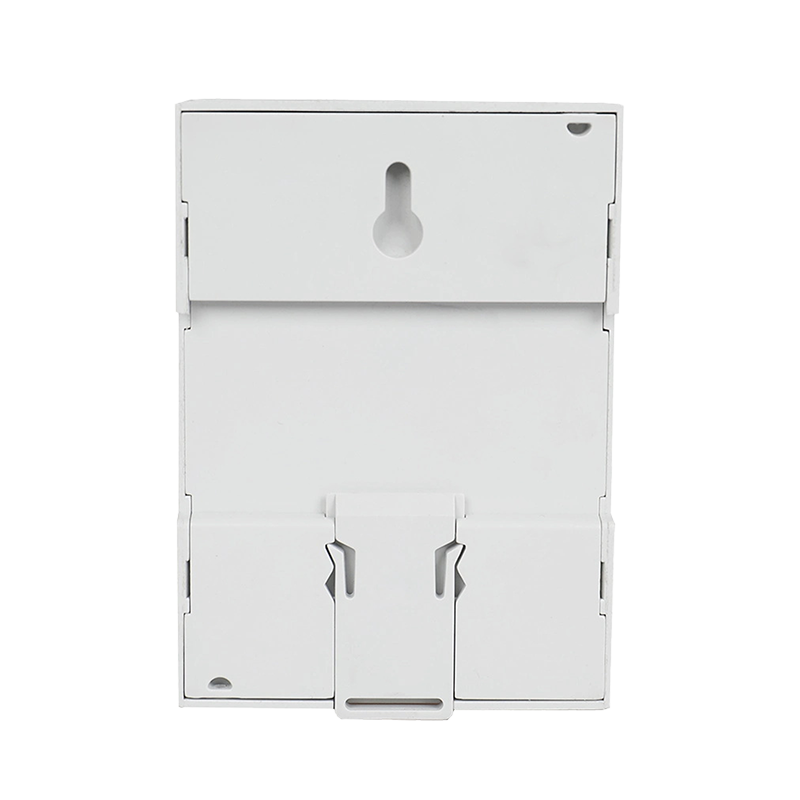

2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Provide total harmonic content analysis data of voltage and current
6.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
7.Support dual timing of meter start up running time and load running time
8.Support access of two rate switching signals and realize power metering of two rates
9.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol

Product Description

Model NO.	Dac4300CT
Theory	Electronic Meter
Power Meter Connection	Feed-through Type
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	Dac4300CT
Related Voltage	3*110/190V or 230/400V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	CT
Measure Type	3p4w
Pulse Constant	Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh
Operating Temperature	-25 to +55C
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Other Function-1	Multi-Tariff
Transport Package	Paper Carton+Pallets
Specification	7210065 mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technicial parameters

Model	DAC4300/DAC4301/DAC4302/DAC4300CT/DAC4301CT/DAC4302CT
Electrical Characteristics	Rate voltage (Un)	3*110/190V or 230/400V AC
	Operational voltage	L-N: 85 to 275V AC; L-L: 85 to 480V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	100A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	400 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	9999999.9 kWh/kVarh
	Measure type	Three phase four wire, Three phase three wire,Single phsae two wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 38400 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

Dac4300CT intelligent three-phase meter adopts DIN rail installation method, with high-precision electric energy metering function, suitable for various three-phase power metering occasions such as industry, commerce and residence. Supports real-time monitoring of power consumption, load analysis and remote data acquisition, and can be connected with modern management systems (such as BMS, EMS, etc.) through intelligent communication interface to improve the efficiency and intelligence level of power management.

Main features:
DIN rail installation: Suitable for standard DIN rail installation, easy to install and maintain.
Three-phase power metering: Supports both three-phase four-wire and three-phase three-wire power systems, adapting to various power networks.
High precision: The accuracy meets international standards and supports multiple metering methods, such as active power, reactive power, apparent power, etc.
Intelligent data acquisition: Real-time monitoring of current, voltage, power factor, frequency, electric energy and other data.
Multiple communication methods: Supports multiple communication protocols such as MODBUS-RTU, RS485, TCP/IP, etc., which is easy to integrate into the monitoring system.
Wide voltage operating range: It can work in a wide range and adapt to the changing power environment.
LCD display: It displays power data in real time for easy on-site viewing.
Alarm function: It supports alarm functions such as overvoltage, undervoltage, and overload to ensure the safety of power use.
Multiple protections: It has protection functions such as lightning protection and short circuit protection to ensure stable operation of the equipment.

Typical application scenarios:
Factory production line: It accurately monitors power consumption on production equipment with high power loads, analyzes power factors, optimizes power use, and reduces energy consumption.
Data center: It implements energy monitoring, real-time data collection and load balancing in large data centers to ensure the normal operation of equipment.
Commercial buildings: It is suitable for multi-user commercial buildings, provides household billing based on power consumption, and improves the intelligent level of power management.

Product advantages:
It provides high-precision power metering to help users achieve accurate energy management and energy saving and consumption reduction.
Support remote data collection and monitoring to understand the operating status of the power system in real time.
Reliable communication protocols and easy integration meet the needs of intelligent power management.
