Application
DAC4100C series products are single-phase rail installation mutil-function power meter. This series of products can support measurement and analysis of variety of power parameters, such as voltage, current, the four quadrant power parameters, power factor, etc. ; Meanwhile they also can provide the measurement of multiple electric energy parameters, such as two way active energy, reactive energy, monthly and daily electricity consumption statistics.
The inbuilt-relay can support remote control, prepaid management and other functions. Providing the last 50 relay operation records and 10 event records, suitable for campus electricity management, Mall electricity charge management, real-time power monitoring systems and other various application environments, with the multi-function, many applications, high stability and long life characteristics. This series of products can support
many mainstream wireless communication methods such as LoRa, WIFI,NB-IoT, 4G, which can realize wireless networking functions, along with RS485 communication interface, the highest baud rate supports 9600bps, supporting the communication protocol such as Modbus, DL/T645. The series of products meet the IEC61010, IEC61326, IEC62053, IEC61557, EN50470 etc. international standard.
Prouducts character
1. Max current:80A DC.
2. Standard 4-modulus width, TH35-7.5 type rail installation
3. Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc
4. Support two-way electric energy metering, provide monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
5. In-built relay, support remote control and prepaid management control, providing latest 50 times opertation records,10 SOE event records
6. Support the power consumption parameter monitoring and alarm function
7. Support WIFI, LoRa, NB-IoT,4G etc. wireless communication way
8. Support 1 pulse output, 1 RS485 communication
Product Description
|
Model NO.
|
DAC4100C
|
|
Theory
|
Electronic Meter
|
|
Power Meter Connection
|
Feed-through Type
|
|
Measured Signal
|
Pulse Peak
|
|
Type
|
Power Meter
|
|
Certification
|
RoHS, ISO, CE
|
|
Customized
|
Customized
|
|
Model No.
|
Dac4100c
|
|
Related Voltage
|
3*110/190V or 230/400V AC
|
|
Rate Current(Ib)
|
5A
|
|
Communication
|
Modbus
|
|
Connect
|
DC
|
|
Measure Type
|
1p2w
|
|
Pulse Constant
|
Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh (Config)
|
|
Operating Temperature
|
-25 to +55°C
|
|
Harmonics Emissions
|
IEC 61000-3-2
|
|
IP Degree of Protection
|
Designed to IP51 Front Display, IP30 Meter Body
|
|
Pulse Width
|
60/100/200 Milliseconds (Configurable), Default Is
|
|
Other Function-1
|
with Relay
|
|
Transport Package
|
Paper Carton+Pallets
|
|
Specification
|
98*75*80 mm
|
|
Trademark
|
XOCA
|
|
Origin
|
Zhejiang China
|
|
HS Code
|
903033900
|
|
Production Capacity
|
1000000 PCS /Year
|
Technical parameters
| Model |
DAC4100C/DAC4101C/DAC4121C/DAC4120C/DAC4160C/DAC4161C |
| Electrical Characteristics |
Rate voltage (Un) |
110V or 230V AC |
| Operational voltage |
85 to 275V AC |
| Overload capacity of voltage |
2*Un for 1 second |
| Rate current(Ib) |
5A |
| Maximum current(Imax) |
80A |
| Operational current |
0.1%Ib to Imax |
| Overload capacity of current |
30*Imax for 0.01 second |
| Operational frequency range |
45 - 65Hz |
| Power consumption |
<2W/10VA |
| Pulse constant |
1000 imp/kWh |
| Display |
LCD with backlight |
| Maximum reading of energy |
999999.99 kWh/kVarh |
| Measure type |
Single phase two wire |
| Measurement accuracy |
Voltage, Current |
±0.5% |
| Active power |
±1.0% or 0.5% |
| Reactive power |
±2.0% |
| Apparent power |
±1.0% |
| Active energy |
±1.0% or 0.5% |
| Reactive energy |
±2.0% |
| Power factor |
±1.0% |
| Frequency |
±0.2% |
| Environmental Characteristics |
Operating Temperature |
-25 to +55℃ |
| Storage Temperature |
-40 to +80℃ |
| Humidity |
< 90%, non-condensing |
| Pollution Degree |
2 |
| Altitude |
Up to 2000m |
| Vibration |
10 Hz to 150Hz, IEC 60068-2-6 |
| IP Degree of Protection |
Designed to IP51 front display, IP30 meter body |
| Electromagnetic Characteristics |
Electrostatic Discharge |
±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2 |
| Immunity to Radiated Fields |
10V/m，80 - 2000MHz; Level 3, according IEC 61000-4-3 |
| Immunity to Electrical Fast Transients |
±4kV; Level 4, according IEC 61000-4-4 |
| Immunity to Surges |
±4kV; Level 4, according IEC 61000-4-5 |
| Immunity to Conducted Disturbances |
10V，0.15 - 80MHz; Level 3, according IEC 61000-4-6 |
| Immunity to Magnetic Fields |
IEC 61000-4-8 |
| Immunity to Voltage Dips |
IEC 61000-4-11 |
| Radiated Emissions |
Class B, according EN55011 |
| Conducted Emissions |
Class B, according EN55011 |
| Harmonics Emissions |
IEC 61000-3-2 |
| Safety |
Overvoltage Category |
CAT III, according IEC 61010-1 |
| Measurement Category |
CAT III, according IEC 61010-1 |
| Insulation |
AC Voltage Test: 4kV for 1 minute |
| Impulse Voltage Test: 6kV - 1.2/50µS waveform |
| Protective Class |
II, according IEC61010-1 |
| Communications |
Interfaces standard and protocols |
2-wire RS485, Modbus RTU Optional: Mbus |
| Buad rate |
1200 to 9600 bps, default is 9600 bps |
| Parity bit |
None, Even, Odd, default is None |
| Stop bit |
1 or 2, default is 1 |
| Response time |
<100ms |
| Transmission mode |
half-duplex |
| Transmission distance |
Up to 1000m |
| Max. Bus loading |
32 pcs |
| Wireless communications |
Types that can be supported |
WIFI, LoRa, NB-IoT, 4G，Zigbee |
| Pulse output |
Interface type |
Open collector optocoupler |
| Pulse constant |
Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable) |
| Pulse width |
60/100/200 milliseconds (Configurable), default is 100milliseconds |
| Pulse output type |
Import/export/total active energy, Import/export/total reactive energy (Configurable) |
| Class |
Class A, according IEC 62053-31 |
| Input voltage |
5 to 27 VDC |
Product description

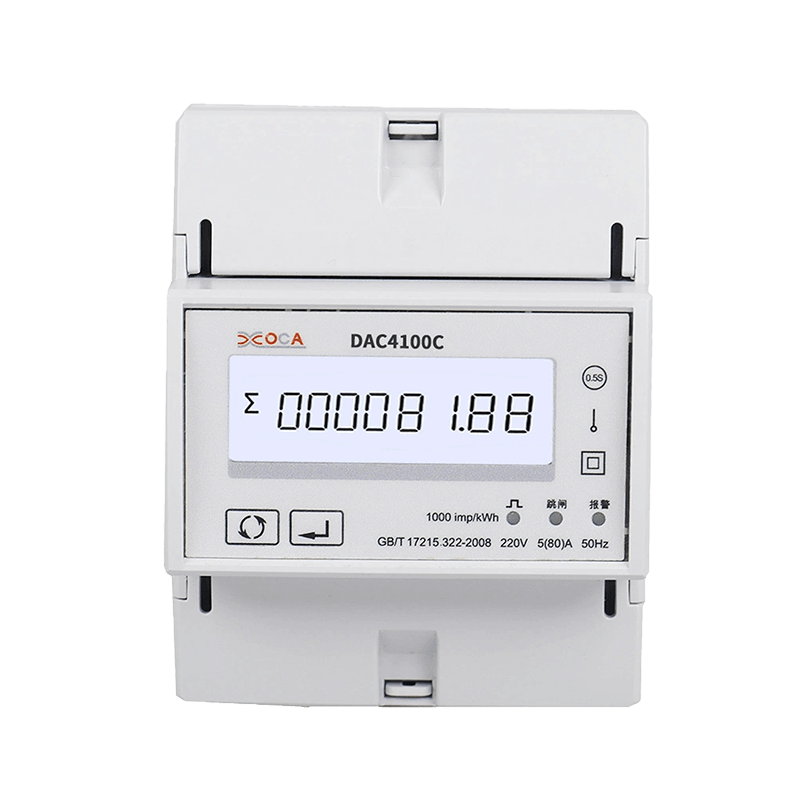

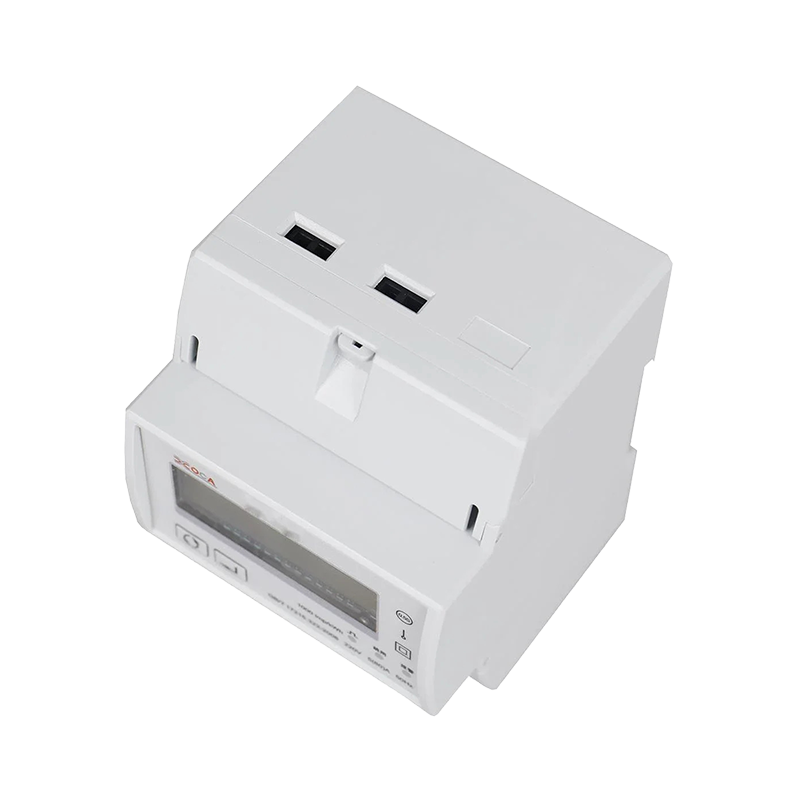

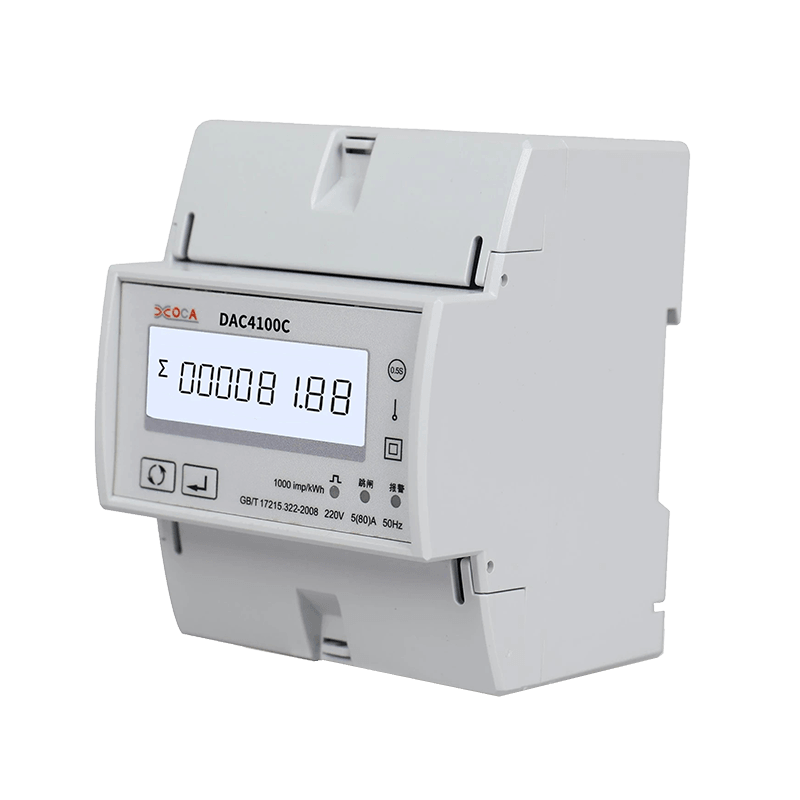

DAC4100C DIN Rail Electric Intelligent Single Phase Multi-Function Energy Meter is an intelligent, single-phase, multi-function energy metering device designed for efficient power management. It is suitable for a variety of scenarios such as residential, commercial buildings, factories and data centers to accurately monitor power consumption. It is easy to install and can be fixed on the DIN rail. It has the characteristics of high accuracy, long life and easy integration with automation systems.
Main parameters:
Rated voltage: AC 220V/230V
Frequency range: 50Hz/60Hz
Current range: 5(60)A or 10(100)A
Accuracy level: Class 1 (compliant with IEC 62053-21 standard)
Power consumption: ≤2W/10VA
Energy display: LCD display with backlight function, supporting multiple information display
Data communication interface:
RS485 interface, supporting Modbus-RTU protocol
Optional wireless communication modules such as LoRa, NB-IoT, Wi-Fi, etc.
Metering function:
One-way/two-way energy metering
Maximum demand record
Time period electricity price function, supporting time-of-day metering
Electric meter pulse output: supports active and passive pulse output, in line with DIN 43864 standard
Working environment temperature: -25℃ ~ +55℃
Relative humidity: 5% ~ 95%, no condensation
Storage capacity: supports large-capacity data storage, and data is kept for at least 10 years after power failure
Protection level: IP51 (suitable for indoor installation)

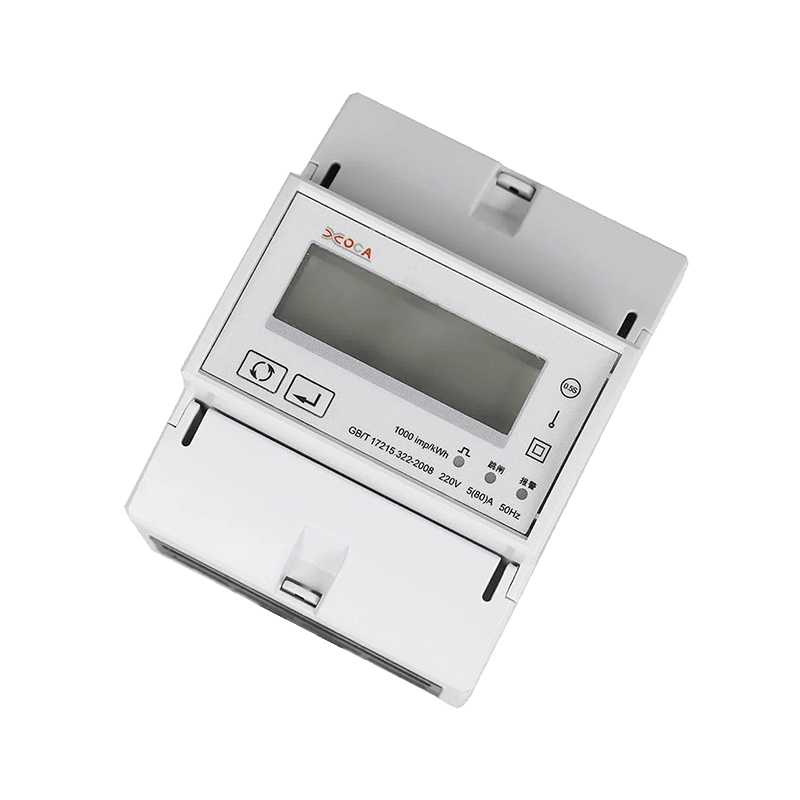

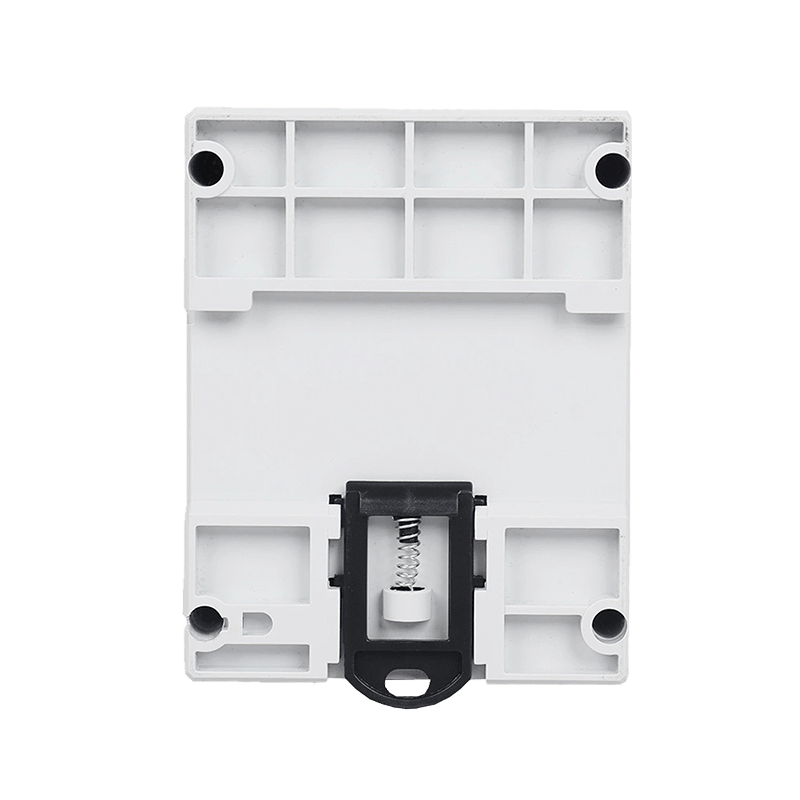

Installation method: standard DIN rail installation, 35mm rail
Product features:
Intelligent metering: Accurately monitor real-time power, current, voltage and accumulated electric energy, suitable for high-demand energy management systems.
Remote monitoring: Through the RS485 interface or wireless module, it can achieve seamless docking with the remote monitoring platform, support remote data reading and equipment management.
Safe and reliable: With anti-electricity theft function, it can automatically identify and prevent abnormal electricity consumption behavior, and ensure the authenticity and accuracy of data.
Multi-function application: supports time-of-day electricity price and peak-valley electricity price management, suitable for different electricity price plans, and helps users optimize electricity expenses.
Environmental design: low power consumption and long life electronic components, in line with the trend of green energy management.
Application range:
Residential area: used for single-phase users' electricity metering, which can be linked with the smart home system to help users understand the electricity consumption of various electrical appliances in their homes.
Commercial buildings: such as office buildings, shopping centers, etc., real-time monitoring and optimization of energy consumption, reducing operating costs.
Industrial facilities: Branch electricity metering in factories and manufacturing industries, supporting time-of-use electricity prices and peak-valley electricity price management, which helps factories save energy and reduce consumption.
Data centers: used to finely manage the energy consumption of servers and other equipment to ensure the efficient operation of data centers.
New energy fields: such as electricity metering of solar and wind power generation systems, supporting two-way metering, facilitating monitoring of the conversion of grid-connected electricity and self-use electricity.
