Application
The meter is designed to measure single phase two wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .
Prouducts character
1.Max 100A DC.

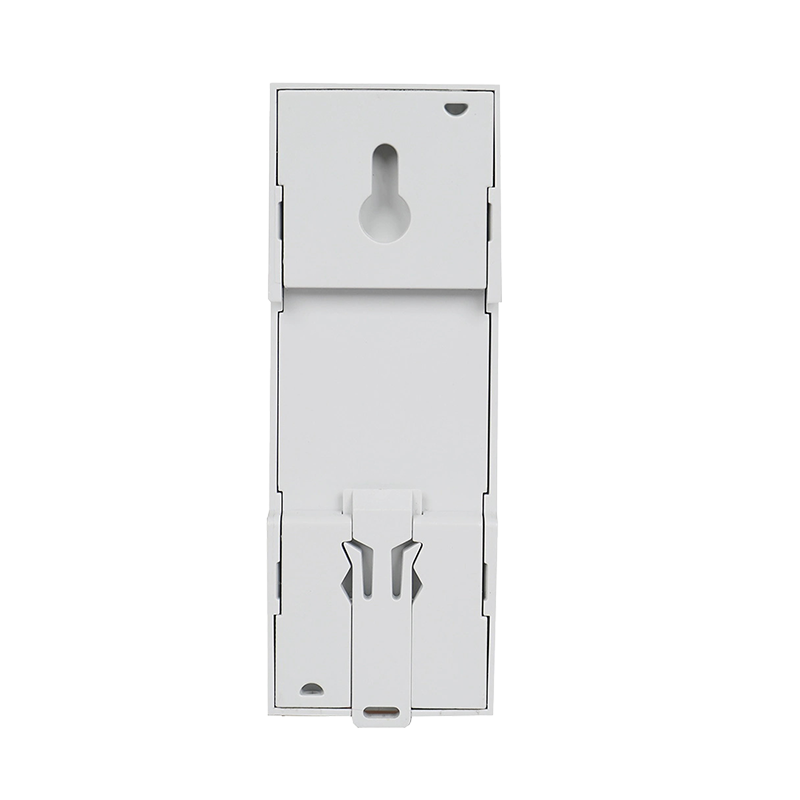

2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
6.Support dual timing of meter start up running time and load running time
7.Support access of two rate switching signals and realize power metering of two rates
8.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol
Product Description
|
Model NO.
|
Dac2100
|
|
Theory
|
Electronic Meter
|
|
Power Meter Connection
|
Feed-through Type
|
|
Measured Signal
|
Pulse Peak
|
|
Type
|
Power Meter
|
|
Certification
|
RoHS, ISO, CE
|
|
Customized
|
Customized
|
|
Model No.
|
Dac2100
|
|
Related Voltage
|
110V or 230V AC
|
|
Rate Current(Ib)
|
5A
|
|
Communication
|
Modbus
|
|
Connect
|
AC
|
|
Measure Type
|
1p2w
|
|
Pulse Constant
|
60/100/200 Milliseconds (Configurable), Default Is
|
|
Operating Temperature
|
-25 to +70ºC
|
|
Harmonics Emissions
|
IEC 61000-3-2
|
|
IP Degree of Protection
|
Designed to IP51 Front Display, IP30 Meter Body
|
|
Transport Package
|
Paper Carton+Pallets
|
|
Specification
|
71*71*68.6mm
|
|
Trademark
|
XOCA
|
|
Origin
|
Zhejiang China
|
|
HS Code
|
9028301300
|
|
Production Capacity
|
1000000 PCS /Year
|
Technicial parameters

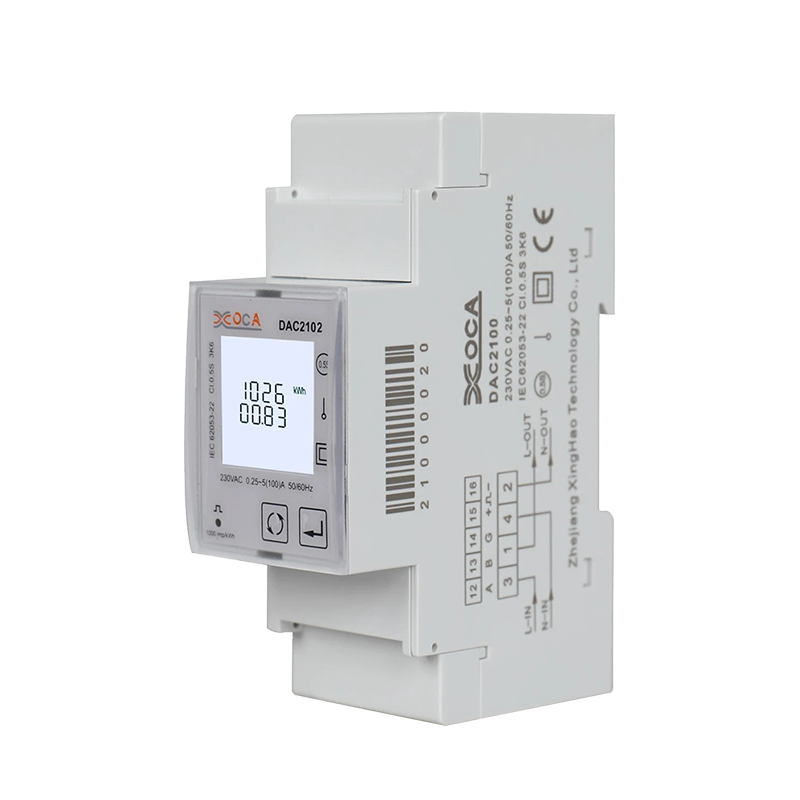

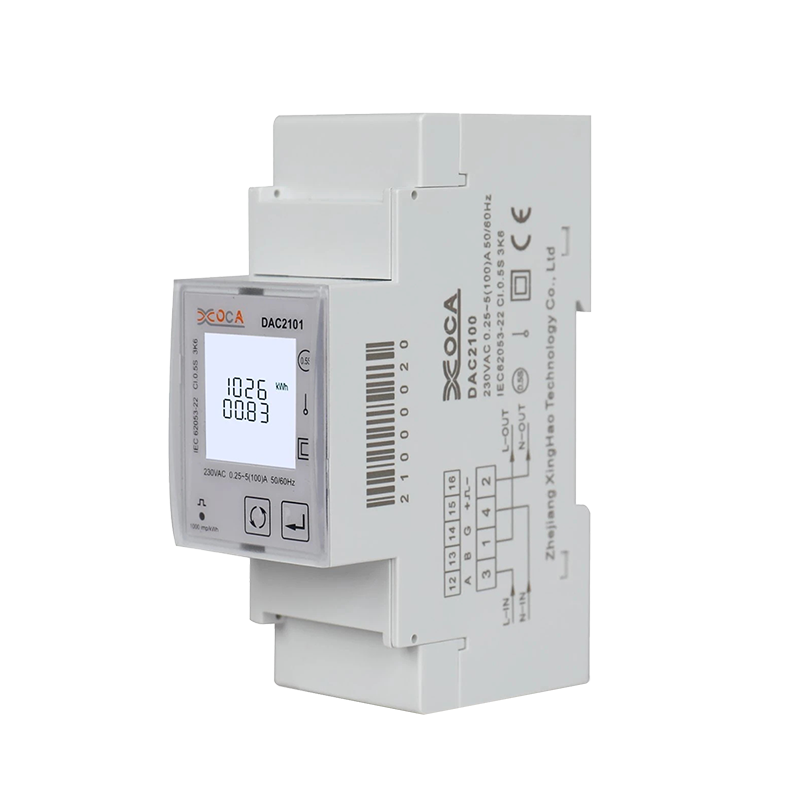

| Model |
DAC2100/DAC2101/DAC2102 |
| Electrical Characteristics |
Rate voltage (Un) |
110V or 230V AC |
| Operational voltage |
85 to 275V AC |
| Overload capacity of voltage |
2*Un for 1 second |
| Rate current(Ib) |
5A |
| Maximum current(Imax) |
100A |
| Operational current |
0.1%Ib to Imax |
| Overload capacity of current |
30*Imax for 0.01 second |
| Operational frequency range |
45 - 65Hz |
| Power consumption |
<2W/10VA |
| Pulse constant |
1000 imp/kWh |
| Display |
LCD with backlight |
| Maximum reading of energy |
999999.99 kWh/kVarh |
| Measure type |
Single phase two wire |
| |
|
| Measurement accuracy |
Voltage, Current |
±0.5% |
| Active power |
±1.0% or 0.5% |
| Reactive power |
±2.0% |
| Apparent power |
±1.0% |
| Active energy |
±1.0% or 0.5% |
| Reactive energy |
±2.0% |
| Power factor |
±1.0% |
| Frequency |
±0.2% |
| |
|
| Environmental Characteristics |
Operating Temperature |
-25 to +55ºC |
| Storage Temperature |
-40 to +80ºC |
| Humidity |
< 90%, non-condensing |
| Pollution Degree |
2 |
| Altitude |
Up to 2000m |
| Vibration |
10 Hz to 150Hz, IEC 60068-2-6 |
| IP Degree of Protection |
Designed to IP51 front display, IP30 meter body |
| |
|
| Electromagnetic Characteristics |
Electrostatic Discharge |
±8kV(contact discharge),±15kV(air discharge);
Level 4, according IEC 61000-4-2 |
| Immunity to Radiated Fields |
10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3 |
| Immunity to Electrical Fast Transients |
±4kV; Level 4, according IEC 61000-4-4 |
| Immunity to Surges |
±4kV; Level 4, according IEC 61000-4-5 |
| Immunity to Conducted Disturbances |
10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6 |
| Immunity to Magnetic Fields |
IEC 61000-4-8 |
| Immunity to Voltage Dips |
IEC 61000-4-11 |
| Radiated Emissions |
Class B, according EN55011 |
| Conducted Emissions |
Class B, according EN55011 |
| Harmonics Emissions |
IEC 61000-3-2 |
| |
|
| Safety |
Overvoltage Category |
CAT III, according IEC 61010-1 |
| Measurement Category |
CAT III, according IEC 61010-1 |
| Insulation |
AC Voltage Test: 4kV for 1 minute |
| Impulse Voltage Test: 6kV - 1.2/50µS waveform |
| Protective Class |
II, according IEC61010-1 |
| |
|
| Communications |
Interfaces standard and protocols |
2-wire RS485, Modbus RTU
Optional: Mbus |
| Buad rate |
1200 to 38400 bps, default is 9600 bps |
| Parity bit |
None, Even, Odd, default is None |
| Stop bit |
1 or 2, default is 1 |
| Response time |
<100ms |
| Transmission mode |
half-duplex |
| Transmission distance |
Up to 1000m |
| Max. Bus loading |
64 pcs |
| |
|
| Pulse output |
Interface type |
Open collector optocoupler |
| Pulse constant |
Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable) |
| Pulse width |
60/100/200 milliseconds (Configurable), default is 100milliseconds |
| Pulse output type |
Import/export/total active energy, Import/export/total
reactive energy (Configurable) |
| Class |
Class A, according IEC 62053-31 |
| Input voltage |
5 to 27 VDC |
Product description

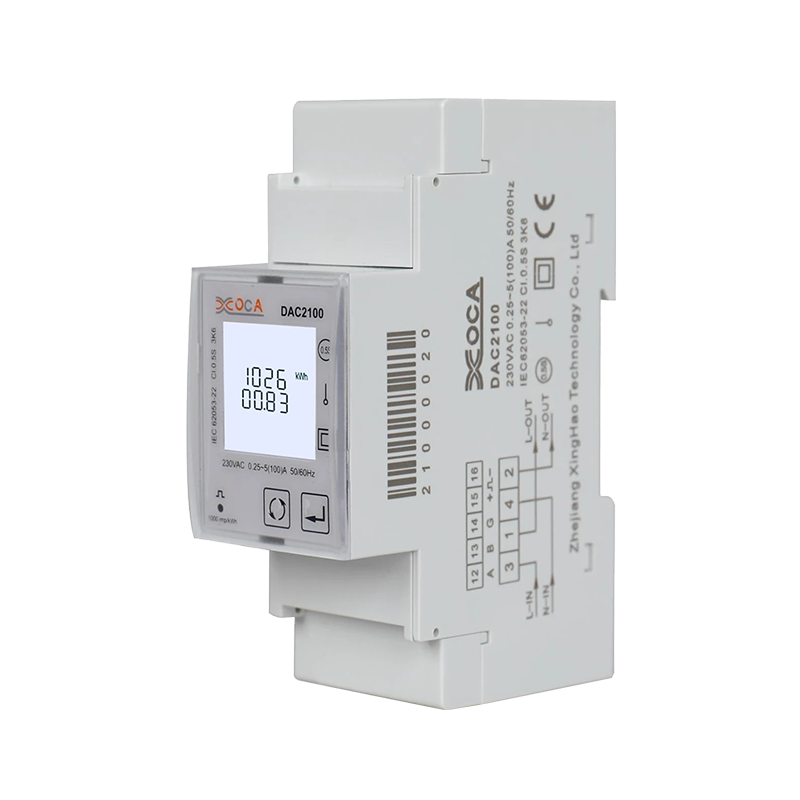

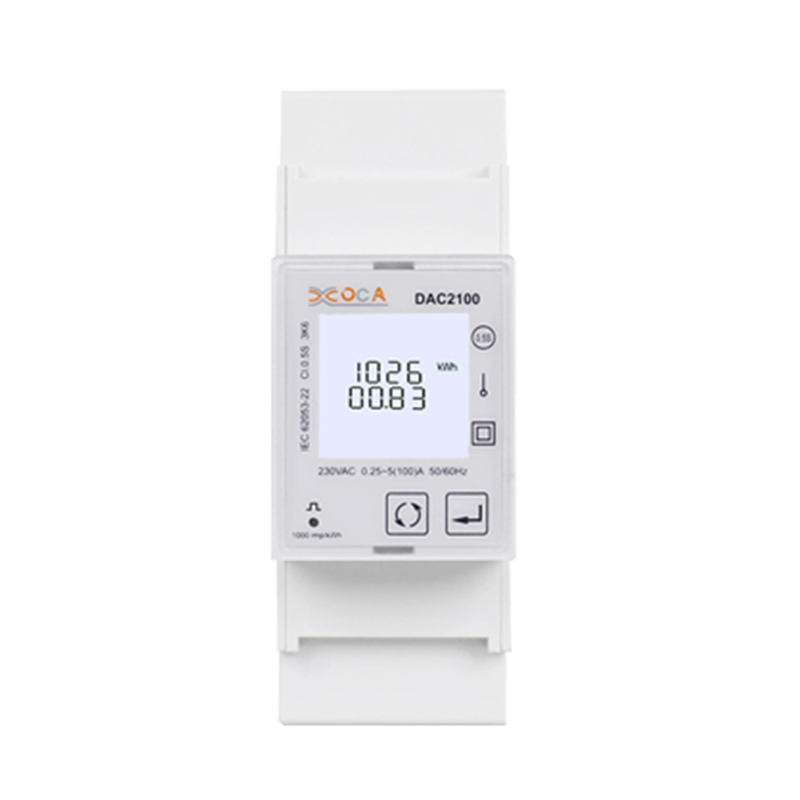

Dac2100 is a DIN Rail single-phase smart Modbus energy meter based on electronic measurement principles. It uses the latest measurement technology and communication protocols to provide users with high-precision and efficient energy monitoring solutions. Not only is this energy meter highly reliable and stable, it is also compact and easy to install and maintain.
Features
High-precision measurement: Dac2100 energy meter uses advanced electronic measurement technology to ensure accurate measurement of electrical energy parameters and provide users with accurate energy usage data.
Modbus communication: This energy meter supports Modbus communication protocol and can be seamlessly connected with various intelligent systems to achieve remote monitoring and data transmission.
Multiple configuration options: Dac2100 energy meter supports customized configuration of pulse constant (60/100/200 milliseconds) to meet the needs of different users.
Wide temperature working range: It can work normally within a wide temperature range of -25 to +70ºC, adapting to various complex environments.
High protection level: IP51-level front display and IP30-level meter body design effectively prevent the intrusion of dust and water and ensure long-term stable operation of the equipment.
Compact design: Using DIN Rail installation method, small size (717168.6mm), easy to integrate into various electrical control cabinets.
Application scope
Dac2100 single-phase smart Modbus energy meter is widely used in the following fields:
Industrial field: In industrial automation systems, it is used to monitor the power consumption of production lines, machinery and equipment, etc., to optimize energy management.
Commercial buildings: In commercial buildings such as office buildings, shopping malls, hotels, etc., it is used to monitor the power usage in various areas and provide data support for energy saving and consumption reduction.
Data center: In the data center, it is used to monitor the power consumption of servers, network equipment, etc. in real time to ensure the stable operation of the data center.
Residential buildings: In smart home systems, it is used to monitor household power consumption and achieve refined management of power consumption.
Public facilities: In public facilities such as schools, hospitals, libraries, etc., it is used to monitor the power usage in various areas and provide data support for energy conservation and emission reduction.
