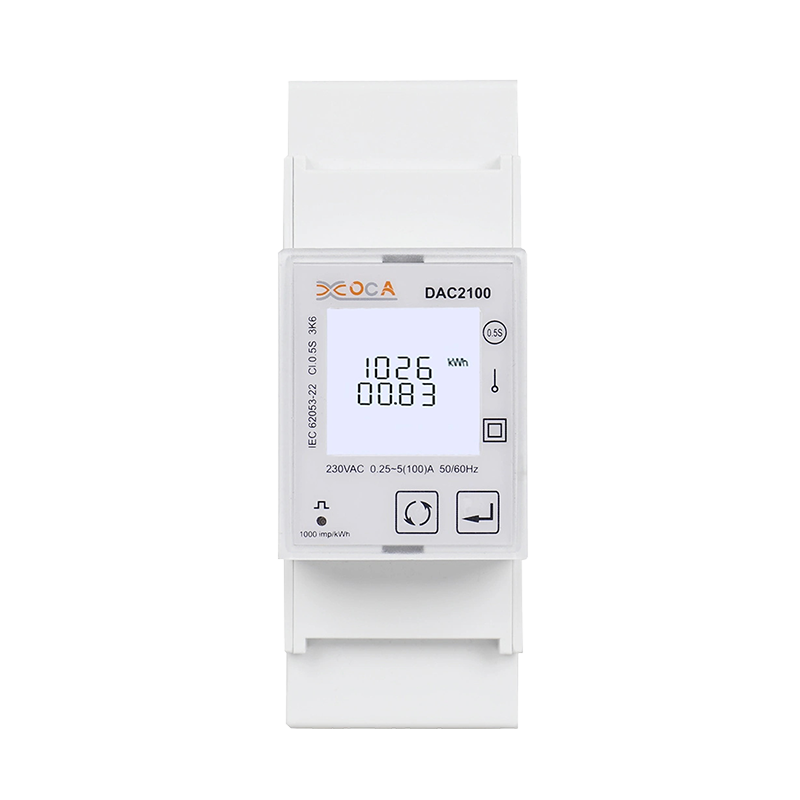

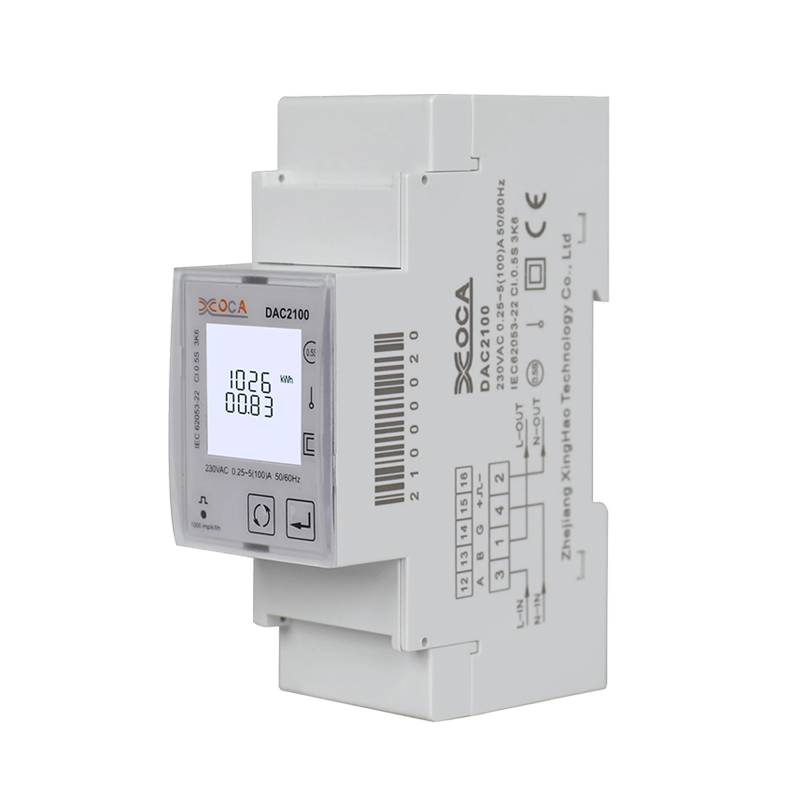

Dac2100 DIN Rail Single Phase Modbus Smart Electric Energy Meter

After-sales Service:New One Replace Within One Year
Warranty:3years
Display:Digital
Installation:AC
Usage:Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment:Single-phase

Contact now Ask a question

Product parameters

Application

The meter is designed to measure single phase two wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1.Max 100A DC.

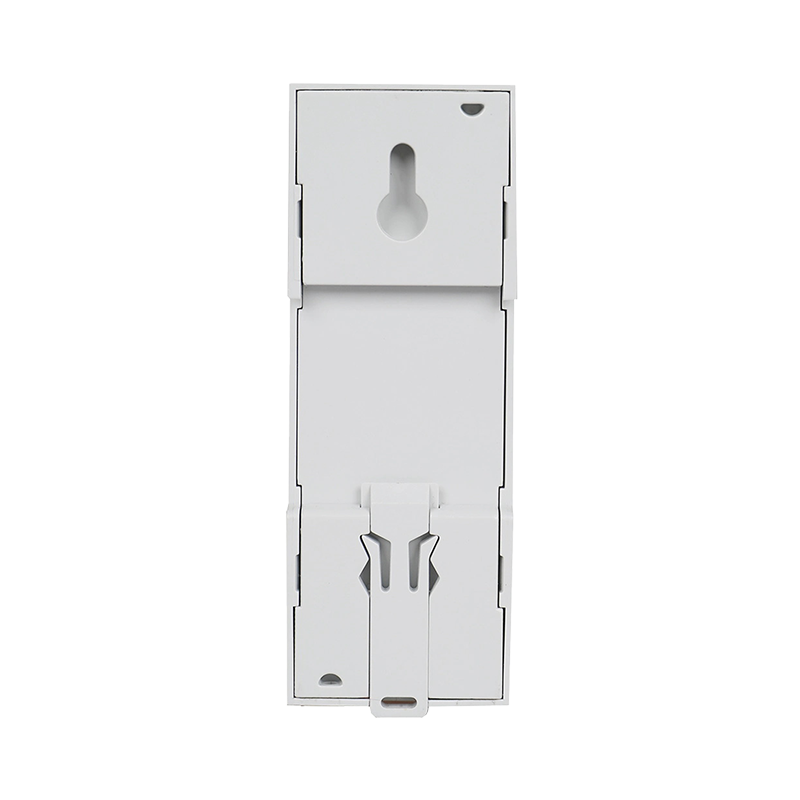

2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
6.Support dual timing of meter start up running time and load running time
7.Support access of two rate switching signals and realize power metering of two rates
8.Support 1 passive pulse output, 1 RS485 communication, Baud rate up to 38400bps, support Modbus RTU, DL/T645-2007 protocol

Product Description

Model NO.	Dac2100
Theory	Electronic Meter
Power Meter Connection	Terminal
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	Dac2100
Related Voltage	110V or 230V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	AC
Measure Type	1p2w
Pulse Constant	1000 Imp/Kwh
Operating Temperature	-25 to +55°C
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Transport Package	Paper Carton+Pallets
Specification	3610065mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	9028301300
Production Capacity	1000000 PCS /Year

Technicial parameters

Model	DAC2100/DAC2101/DAC2102
Electrical Characteristics	Rate voltage (Un)	110V or 230V AC
	Operational voltage	85 to 275V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	100A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	1000 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	999999.99 kWh/kVarh
	Measure type	Single phase two wire

Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%

Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body

Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2

Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1

Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 38400 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs

Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

DIN Rail single-phase Modbus smart energy meter is a smart energy meter for accurate measurement of single-phase power systems. It supports Modbus communication protocol and is suitable for applications such as power monitoring, data acquisition and energy management. The energy meter is designed to meet DIN Rail installation standards and is easy to install and maintain in equipment such as distribution boards and control cabinets.

Main features:
Accurate measurement:
Measures multiple power parameters such as current, voltage, power, power factor, frequency, etc.
Supports energy metering and real-time recording of energy consumption (such as kilowatt-hour kWh), which can accurately monitor power consumption.

Modbus communication protocol:
Supports Modbus RTU protocol, and can exchange data with other devices that support Modbus protocol (such as PLC, SCADA system, remote monitoring system, etc.) to achieve automatic control and remote monitoring.
Communicate through RS485 interface to ensure stable and reliable data transmission.

Easy to install:
Designed to meet DIN Rail installation standards, easy to install, suitable for industrial distribution boards, distribution cabinets and other power equipment.

Intelligence:
Built-in smart chip, supports power statistics and fault warning.
It can realize functions such as timed data collection and alarm setting.

Wide operating voltage and temperature range:
Adapt to different working environments and have strong anti-interference ability.
Main technical parameters:
Voltage range: 120V ~ 280V (applicable to single-phase power grids in most countries)
Measurement accuracy: ±1% (in line with international standards)
Maximum operating current: 5A or 10A (depending on different models)
Power factor range: 0 ~ 1
Communication interface: RS485 (Modbus RTU)
Display mode: LCD display (displays real-time voltage, current, power, etc.)
Operating temperature: -10°C ~ 50°C
Installation method: DIN Rail installation
Size: 90mm × 70mm × 60mm (may vary depending on the model)

Application range:
Industrial automation and energy management:
Applicable to real-time monitoring, energy consumption management and fault diagnosis of industrial field electricity. It can be integrated into the factory's automation system, and remote data acquisition is carried out through the Modbus RTU protocol to optimize energy efficiency.

Smart buildings and building energy efficiency management: Applicable to building automation systems to achieve real-time monitoring and management of single-phase power consumption, helping building managers conduct energy audits and reduce energy consumption.

Commercial power monitoring: Commercial places, such as shopping malls, office buildings, hotels, etc., install smart energy meters to monitor and manage power usage in various areas, help identify unnecessary energy consumption, and provide data support for energy-saving improvements.

Distribution system monitoring: Applicable to energy efficiency management and remote data collection of small distribution systems to ensure efficient operation of distribution systems and reduce energy waste.

Data centers and server rooms: Used for energy monitoring in data centers or server rooms, real-time recording of power consumption, helping to optimize energy efficiency and provide fault warnings.

Power supply and public facilities: Used for power metering and data transmission for public facilities, substations, power companies and power consumers, supporting remote monitoring and management.
